AtlasLocator is compatible with Lorawan devices, and very soon we will expand to devices of other technologies such as Sigfox, NarrowBand IOT and 5G.

If you don’t see your device on the list, don’t worry, it will surely be supported on the platform. In the event that you add it to the platform and it does not work, you can contact us by email: [email protected], and we’ll try to add it.

Technology Brand

Operator: TTS (TTN) Fossa Helium

Browan TBOL100

Descripción del producto

The object locator has a rechargeable battery that uses USB-C to charge. It features a button to activate an uplink and turns the unit on/off.

This latest version of the product supports downlinks to reconfigure device settings;

This device ships with LoRaWAN keys – there is no default app, that’s up to you. For an easy-to-use, Helium-based tracker, check out the Trackpac-enabled version of Object Locator.

Especificaciones

Más información

You can buy it here

Dragino LGT92

Descripción del producto

Dragino LoRaWAN LGT-92 GPS Tracker is an open source GPS tracker based on ultra low power STM32L072 MCU and SX1276/1278 LoRa module.

LGT-92 includes a low-power L70 GPS module and a 9-axis accelerometer for motion and attitude detection. The MCU can control the power of both the GPS module and the accelerometer to achieve the best power profile for different applications.

The LoRa wireless technology used in LGT-92 allows the user to send data and reach extremely long ranges at low data rates. Provides ultra-long range spread spectrum communication and high immunity to interference while minimizing current consumption. It goes to the professional monitoring service.

The LGT-92 series products include two main variants:

LGT-92-LI: It is powered by 1000mA rechargeable Li-ion battery and charging circuit, which is intended for real-time tracking with short tracking uplink.
LGT-92-AA : Disable the charging circuit for lowest power consumption and power directly from AA batteries. This is designed for asset tracking where you only need to uplink a few times a day.

LGT-92 is an open source product, it is based on STM32Cube HAL drivers, and many libraries can be found on ST site for rapid development.

Especificaciones

System:

STM32L072CZT6
Flash: 192KB
RAM: 20KB
EEPROM: 6KB

GPS, L70R:

Acquisition: 16mA
Tracking: 13mA
Cold start: <35s
8uA@backup mode
Hot start: <30s
Accuracy: < 2.5m CEP
Hot reset:

Accelerometer:

MPU9250 9-axis
tri-axis MEMS gyroscope
tri-axis MEMS accelerometer
tri-axis MEMS magnetometer
3.5mA operating current

Energy consumption:

Sleep mode: 77uA (for LGT-92-LI), 3uA (for LGT-92-AA)
Tracking: max: 38mA
LoRa transmission: 24 ~ 150mA

Characteristic:

Compatible with LoRaWAN 1.0.3
Regular/real-time GPS tracking
Built-in 9-axis accelerometer
Motion detection capability
Power monitoring
Charging clip with USB port (for LGT-92-LI)
1000 mA lithium-ion battery (for LGT-92-LI)
2 AA battery holders (for LGT-92-AA model)
Tricolor LED, alarm button
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
AT commands to change parameters

Applications:

Logistics and Supply Chain Management
Smart cities
Smart factory

Más información

You can buy it here

Dragino LHT52

Descripción del producto

The Dragino LHT52 Temperature and Humidity Sensor is a long range LoRaWAN sensor. It includes a built-in temperature and humidity sensor and has a USB Type-C sensor connector for connecting to external sensors, such as an external temperature sensor.

Especificaciones

LHT52 detects the temperature and humidity of the environment and sends these values through the long-range wireless LoRaWAN protocol. It targets professional wireless sensor network applications, such as food service, smart metering, smart cities, building automation, etc.

LHT52 supports 2 AAA batteries and works for a long time up to several years. Use can easily replace batteries after they run out.

LHT52 is fully compatible with LoRaWAN v1.0.3 protocol, it can work with standard LoRaWAN gateway.

LHT52 supports data logging function to make sure users don’t lose sensor data. Records sensor values for each uplink. These values can be retrieved by the LoRaWAN server through the downlink command.

LHT52 supports temperature alarm function. You can connect the alarm in a short interval while the temperature exceeds the preset limits.

Characteristic:

Attachable to the wall.
LoRaWAN v1.0.3 Class A protocol.
Built-in temperature and humidity sensor
Optional external probe
Frequency bands: CN470/EU433/KR920/US915/ EU868/AS923/AU915
AT commands to change parameters
Remote configuration parameters via LoRaWAN Downlink
Firmware upgradeable via program port
Supports 2 AAA LR03 batteries.data logging function
IP rating: IP52

Applications:

Smart Buildings and Home Automation
Logistics and Supply Chain Management
Smart Metering
Smart Agriculture
Smart Cities
Smart Factory

Package includes:

1 x LHT52 Temperature and Humidity Sensor

Dimensions and weight:

Device:

Size: 5.8 x 5.8 x 2.0 cm/unit
Weight:

Package:

Size: 7.5 x 6.7 x 3cm Weight: 53g

Más información

You can buy it here

Dragino LHT65

Descripción del producto

The Dragino LHT65 Temperature and Humidity Sensor is a long range LoRaWAN sensor. It includes a built-in SHT20 temperature and humidity sensor and has an external sensor connector to connect to external sensors such as temperature sensor, soil moisture sensor, tilt sensor, etc.

Especificaciones

The LHT65 allows users to send data and achieve extremely long ranges. Provides ultra-long range spread spectrum communication and high immunity to interference while minimizing current consumption. It targets professional wireless sensor network applications, such as irrigation systems, smart metering, smart cities, building automation, etc.

LHT65 has a built-in 2400mAh non-rechargeable battery that can be used for more than 10 years*.

LHT65 is fully compatible with LoRaWAN v1.0.2 protocol, it can work with standard LoRaWAN gateway.

LHT65 has 3200 time stamped data records which can be retrieved with time stamp for further analysis.

Characteristic:

LoRaWAN Class A protocol
Frequency bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
AT commands to change parameters
Remote configuration parameters via LoRaWAN Downlink
Firmware upgradeable via program port
Built-in 2400 mAh battery for more than 10 years of use.
Built-in temperature and humidity sensor
Optional external sensors
Tri-color LED for indicate status
3200 set sensor log with timestamp

Applications:

Wireless alarm and security systems
Home and building automation
Automated meter reading
Industrial monitoring and control
Long-range irrigation systems, etc.

Package includes:

1x LHT65
1 sensor E1 or E2 or E3 or E5
1 program cable.

Dimensions and weight:

Device:

Size: 135 x 70 x 30 mm / pieces
Weight: 105g

Package:

Size: 145 x 80 x 50 mm / pieces
Weight: 170g

Más información

You can buy it here

Dragino LWL02

Descripción del producto

The Dragino LWL02 is a LoRaWAN water leak sensor. It detects the water leak status and sends it to the LoRaWAN network. The LWL02 is a small sensor, the dimension is as small as 69.2 x 29.2 x 15mm. BATTERIES NOT INCLUDED

Especificaciones

The Dragino LWL02 is a LoRaWAN water sensor. When there is water between the two metal probes, LWL02 indicates a water leak event and an uplink to the IoT server through the LoRaWAN network.

LWL02 is powered by 2 AAA batteries and designed for long time use, these two batteries can provide around 16,000~70,000 uplink packets, resulting in 2-10 years battery life. After the battery runs out, the user can easily open the case and replace it with 2 common AAA batteries.

The LWL02 will send data periodically every day as well as for each water leak event. It also counts the water leak times and calculates the duration of the last water leak. User can also disable uplink for each water leak event; instead, the device can count each event and uplink periodically.

Each LWL02 is pre-loaded with a set of unique keys for LoRaWAN registration, please register these keys to the LoRaWAN server and it will connect automatically after power on.

Characteristic:

LoRaWAN v1.0.3 Class A
LoRa SX1262 core
Water leak detection
2 AAA LR03 batteries (NOT INCLUDED)
Bands: EU868
AT commands to change parameters
Uplink power on periodically and water leak event
Water leak analysis
Downlink to change settings

Applications:

Wireless alarm and security systems
Home and building automation
Industrial monitoring and control.

Más información

You can buy it here

RAK 2171

Descripción del producto

WisNode TrackIt (RAK2171) is the Latest LoRaWAN GPS Tracking Device from RAKwireless (2-Pack)

Especificaciones

WisNode TrackIt (RAK2171) is the latest LoRaWAN GPS tracking device from RAKwireless. It comes in a small form factor with a rechargeable battery and a setup and tracking app, available for iOS and Android devices.

RAK2171 supports multiple working modes and notification options. When used with LoRaWAN gateways, you can monitor your tracker on the app map, create geofences, and receive SOS and movement notifications. You can also configure WisNode TrackIt to work with any third party LoRaWAN network using the TrackIt app as a configuration tool.

Key features

Built-in LoRaWAN, Bluetooth and GPS
Built-in battery: 400 mAh
Charger with magnetic plate
Tracker dimensions: 42x42x18 mm
Tracker weight: 25 g
Built-in accelerometerOperating temperature: -20°C to +60°C
Android and iOS apps for easy management, configuration and location tracking
IP65

Package Inclusions TrackIt Set (2 pieces)

2 pieces WisNode TrackIt (1 white + 1 gray)
2 silicone protective covers.
2 charging cables.
Quick start guide

Más información

You can buy it here

Rak 7200

Descripción del producto

RAK Wireless RAK7200 LoRa is a location based tracker in 868MHz version. This RAK7200 is a LoRa tracker with a 3.7-V lithium-ion battery and a GPS modem. It is based on LoRa low power module which integrates STM32L073 ultra low power microcontroller, SX1276 long range LoRa modem and CXD5603GF GPS modem.
The device can be used as a rapid prototyping tool to develop LoRaWAN applications . It is ideal for IoT applications such as asset tracking, smart vehicle management, and location-based services.

Especificaciones

Product characteristics:

Supports sleep mode, low power consumption.
Built-in LIS3DH digital motion sensor, which has user-selectable dynamic full scales of ±2g/±4g/±8g/±18g and is capable of measuring accelerations with rates output data rate from 1Hz to 5kHz.
Built-in nano pressure sensor LPS22HB, which functions as a digital output barometer.
Built-in 9-axis sensor, including a 3-axis gyroscope, 3-axis accelerometer, three-axis and a three-axis magnetometer.
Compatibility with LoRaWAN™ 1.0.2 protocol stack: ABP or OTAA mode.
LoRa® and GPS antenna are integrated inside the housing.
Micro USB for configuration and battery charging
Supports the global license-free frequency band: IN865, EU868, US915, AU915, AS920, KR920 and AS923.

Más información

You can buy it here

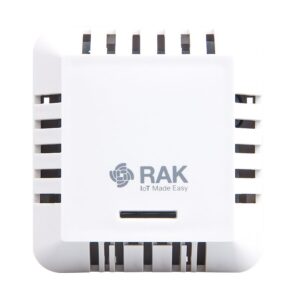

Rak 7204

Descripción del producto

The RAK7204 is a LoRaWAN node that serves as an environmental monitoring station. High-precision sensors can measure changes in temperature, humidity, gas pressure, and provide an index of indoor air quality.

All the accumulated data can be sent to a LoRaWAN gateway to be forwarded to the cloud. Due to its design, the RAK7204 can achieve a very low power consumption rate, which with the included non-rechargeable battery allows for more than 2 years of operation. The firmware has built-in functionality that allows the user to adjust the sensors’ sampling interval and transmission cycle. Last but not least, the RAK7204 adopts a highly integrated design, fitting the electronics and battery inside a 90x85x34mm case.

Especificaciones

Characteristic:

– Measurement of a variety of environmental parameters.
– Temperature, humidity, gas pressure and indoor air quality (IAQ)
– Sensor Integrated Environmental Unit BOSCH BME680
– Compact size
– Built-in LoRa antenna, exchangeable battery
– Easy to mount and maintain
– Low power operation
– Standby current less than 15 uA
– Sampling and transmission interval adjustable
– Replaceable high-capacity 3500mAh lithium battery with a battery life of more than 2 years
– Fully LoRaWAN 1.0.2 compliant

Note :

1. The included battery is not rechargeable. In case you need to connect the Micro USB port to configure the node, you need to remove the battery. There are no protection circuits and leaving the battery inside the device when connected via the Micro USB interface will damage the device and could cause the device to overheat and catch fire. Be sure to remove the battery immediately after opening the case, before doing any other setup or maintenance.

2. The distance between the battery connector pins is 2.0mm. When choosing a battery, attention should be paid to the consistency of the positive and negative poles with the figure above. Reverse connection or short circuit may damage the device and may cause battery overheating and burning. Therefore, when replacing the battery, it is necessary to strictly confirm whether the positive and negative poles of the connector are correct.

Más información

You can buy it here
